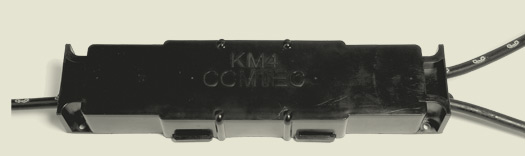

Cable closure KM4

The cable c losure KM4 is a mechanical passage c losure with 4 inputs or outputs. The housing sections consist of break- and shock- as well as age-resistant plastic material, the appropriate sealing chambers are filled with a duroplastic and „self-healing “sealant.

This c losure whose installation is very easy and quick and requires almost no tools offers sufficient space for filled and unfilled core connectors and also for a splice module.

After the strain reliefs and eventually the shield connections have been mounted, the cable is brought into specially provided chamber and the upper and lower part are inserted into each other until the locking hooks engage in a secure manner.

After installation, the cable c losure KM4 can be fixed to a wall or a pole by means of mounting accessories or brought into the ground.

The components of the KM4 are neither harmful to health nor to the environment and are not subject to the dangerous material regulation.

Version Cable diameter Double cores

KM4 up to 12.5 mm approx. 10 DA

Assembly instructions available for downloading as a PDF file
